String Pots for Q3, Q6 (Upper Chest DSX)

[DiVe]

Dear colleagues,

for the Q3 and Q6 dummies there is an optional measurement available for the upper chest deflection
in a frontal impact.

When using CRS with vehicle belt there is a risk of a significant compression of upper chest that is not visible in the normal chest deflection measurement.
So an additional string pot is used for an upper chest deflection measurement.

My proposal for the coding of this deflection measurement is:
??CHSTUP00Q3DSX? Chest Upper Displacement X (German: Brustweg oben X)
??CHSTUP00Q6DSX? Chest Upper Displacement X (German: Brustweg oben X)

Actually there is no photo/picture available. I hope I can deliver one soon.

Kind regards,
Dirk

[DiVe]

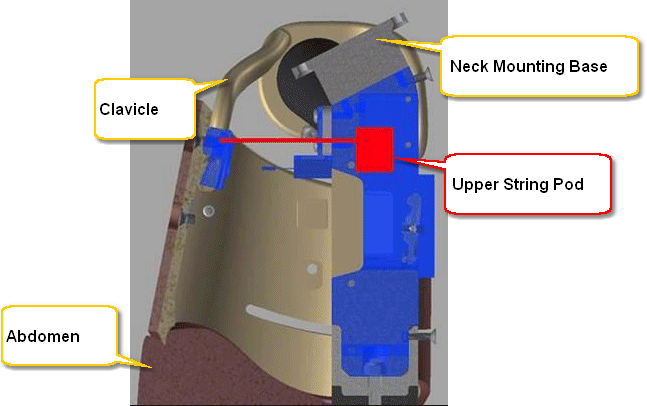

... here comes a cross section "photo" of the dummy with the measurement device:

[Admin]

considered closed by on-line meeting 9 March 2016
