BR THSP 01 coding

[DiVe]

Dear colleagues,

there has been a request to add the two typical measurements for:

Code: Select all

??THSP01LE00BRACX?
??THSP01LE00BRACX?

to page 1 of the figure (may also Z?).

The current status is:



Kind regards,
Dirk

[chadivan]

Attached is the updated version of the figures for review. We have added the LE and RI for the THSP01.

[DiVe]

The figures are now available as EMF and included in the database 1.6.3p1 (2022-12-08).
The changes against the former release of the BR figures from 2013 are:

On page 1

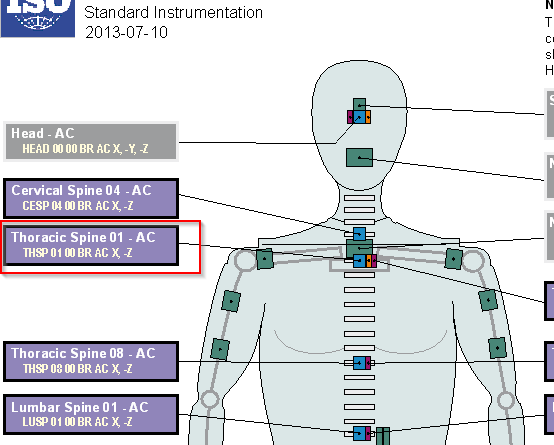

Old

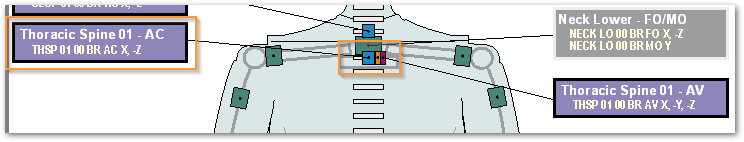

2022-12-08 10_37_55-XnView - [ISO_BR_1_161.emf].png (12.05 KiB) Viewed 2455 times

New

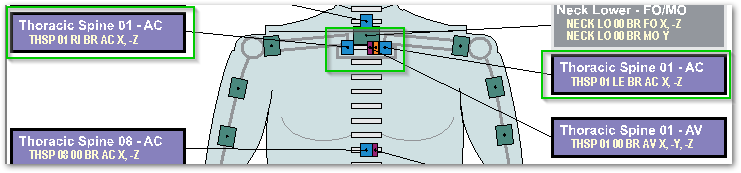

2022-12-08 10_38_11-XnView - [ISO-BR_20210707_P1.emf].png (15.25 KiB) Viewed 2455 times

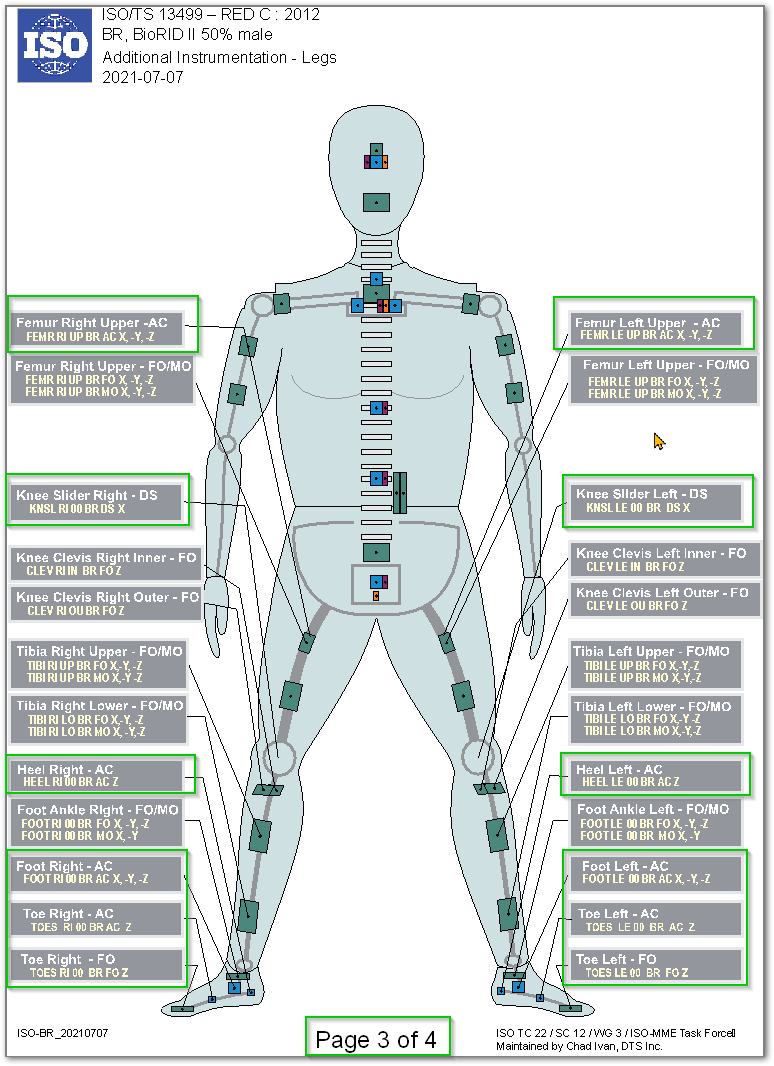

Additional Instrumentation of Page 3

2022-12-08 10_44_09-XnView - [ISO-BR_20210707_P3.emf].png (81.29 KiB) Viewed 2455 times
