Posted: **Tue Mar 31, 2020 9:24 pm**

Dear colleagues,

currently we have defined the following tilt sensors for the positioning of the THOR dummy:

??HEADPR00THAN X/Y ?
??THSPPR00THAN X/Y ?
??THSP12PRTHAN X/Y ?
??PELVPR00THAN X/Y ?

But there is one more tilt sensor needed for the THOR at the Neck Pitch change:

: TH Tilt Sensors.png (5.28 KiB) Viewed 18682 times

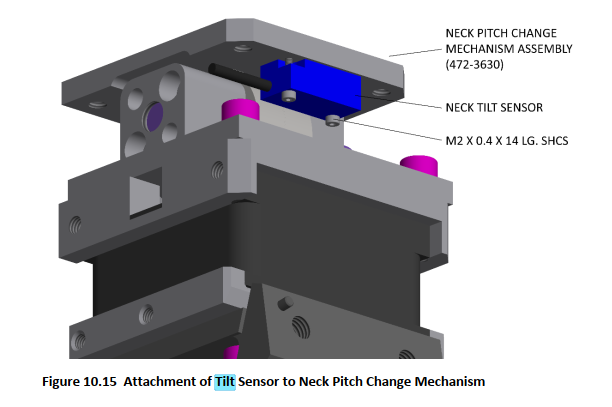

: TH Neck Pitch Change Tilt Sensor.png (49.62 KiB) Viewed 18682 times

So I would propose to add:

??NECKPR00THAN X/Y ?

We also need to add in the current figure of the TH the THSPPR12 sensor.

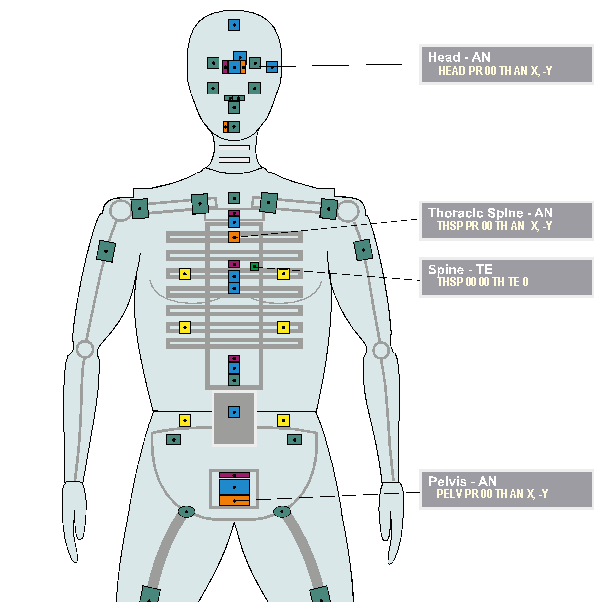

: TH_Figure.png (23.84 KiB) Viewed 18682 times

Kind regards,
Dirk

Posted: **Wed Apr 01, 2020 10:57 am**

desision on the todays Task Force Meeting:

add the missing positioning sensor as:

??NECKPR00THAN X/Y ?

The TH/T3 figure will be prepared with all 5 tilt sensors and
as a first variant for the new locations/naming of the temperature sensors as in ISO 27957 for the next meeting.

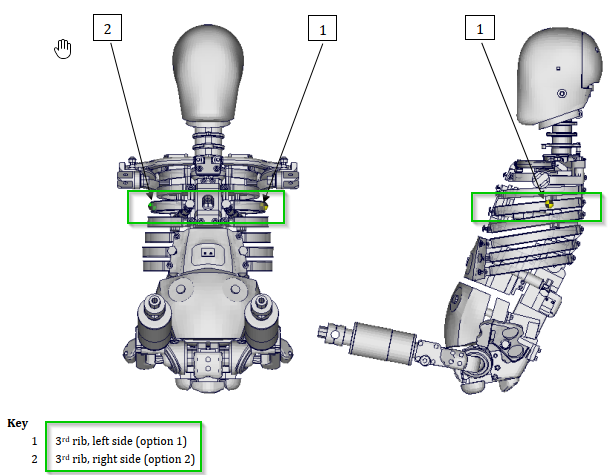

: 2020-04-01 12_51_30-Window.png (126.29 KiB) Viewed 18675 times

see: viewtopic.php?f=38&t=589

Kind regards,
Dirk

Posted: **Tue Sep 15, 2020 5:26 pm**

Dear colleagues,

I have implemented the new locations for the tilt sensors in the figures:

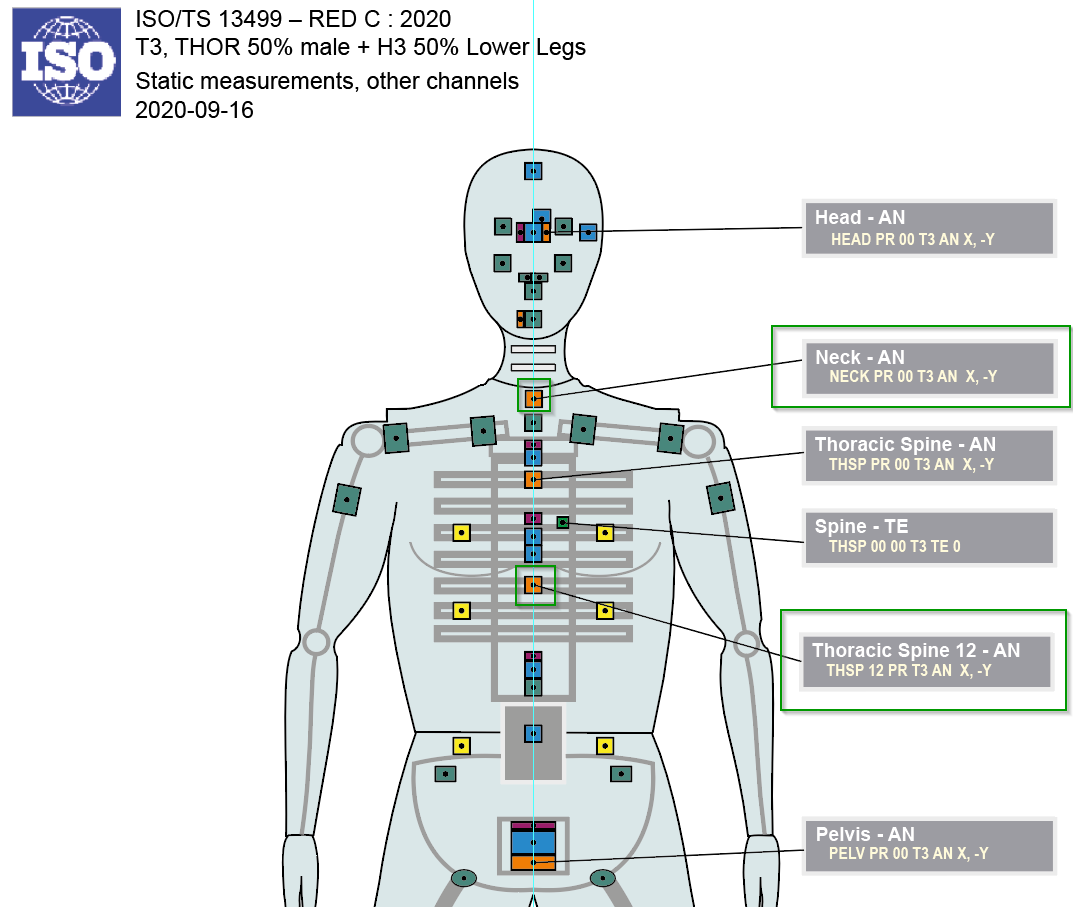

: 2020-09-16_T3_20200916_Page4.png (121.83 KiB) Viewed 18018 times

According to the manual the locations are:

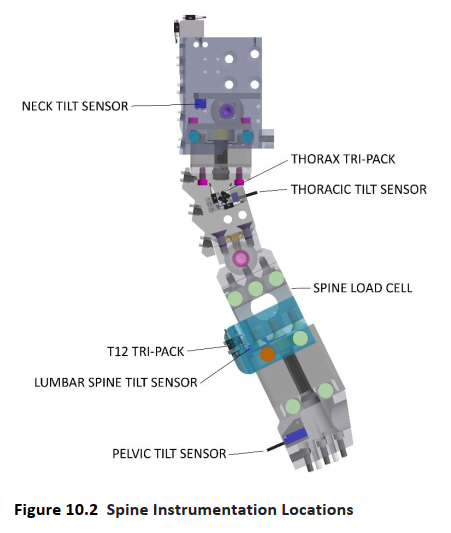

: 2020-09-16_UM_THOR-50M_REV_E_TiltSensor_locations.png (104.31 KiB) Viewed 18018 times

The new locations of the temperature sensors are not included as we decided to await the complete rework of all figures after the new release 1.6.2.

Kind regards,
Dirk

Posted: **Wed Sep 16, 2020 10:29 am**

Dear Sebastian,

as you made the remark for the different naming style of the THSP12PR code,
I have verified the coding for the THSP12PR ANX,Y measurement:

This coding has been introduced for the TH (figure, database) in 2015:

: 2020-09-16 TH_THSPPR12.png (8.03 KiB) Viewed 18008 times

And transfered to the T3 in 2018:

: 2020-09-16 T3_THSPPR12.png (7.38 KiB) Viewed 18008 times

So, I suggest this coding is in use for a long time and should not be changed anymore.

In 2015 we also add the PR code for FL2:

: 2020-09-16_PR_on_FL2.png (7.5 KiB) Viewed 18008 times

Kind regards,
Dirk

Posted: **Wed Nov 25, 2020 2:03 pm**

closed at on-lie meeting 2020-11-25
