Figures THOR + H3LL (T3) 2020_06_17

[DiVe]

Dear colleagues,

as decided yesterday on the meeting, I have prepared the T3 figures and set the date to 2020-06-17.
It has now on page 4 the additional positioning angles included.

Please find on PDF overview on the current state here:
ISO-T3_20200617.pdf (removed)

Kind regards,
Dirk

[DiVe]

Dear colleagues,

we are about to prepare the final database and figures for 162
There has been no feedback so far and I made only a minor change in the figures

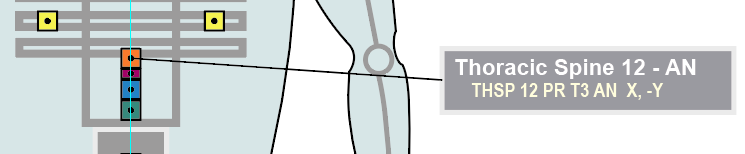

to position the static angle measurements for T12 closer to the load cell, as in reality:


Kind regards,
Dirk

[DiVe]

Please find here the final T3 figures for 1.6.2 as PDF:

ISO-T3_20200617.pdf

(104.87 KiB) Downloaded 457 times
