Q6 Iliac Load Cell Codes

[DiVe]

Dear colleagues,

in the same manner as for the QA (Q10): http://www.iso-mme.org/forum/viewtopic.php?f=89&t=533
I have added the codes for the ILAC LC for the Q6 to the database:

Code: Select all

??ILACLE00Q6FOX?
??ILACLE00Q6MOY?
??ILACRI00Q6FOX?
??ILACRI00Q6MOY?

The codes have been added to the second page of the Q6 figure (Additional instrumentation):


Bye,
Dirk

[derpmann]

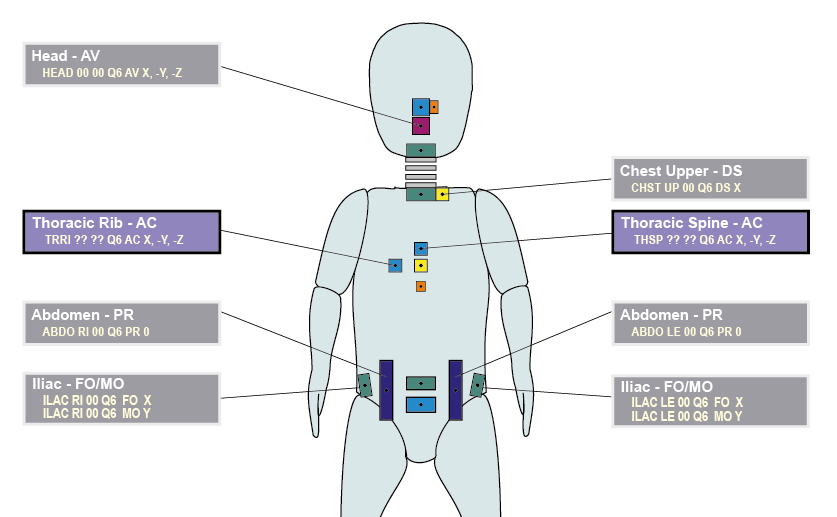

here is the figure
